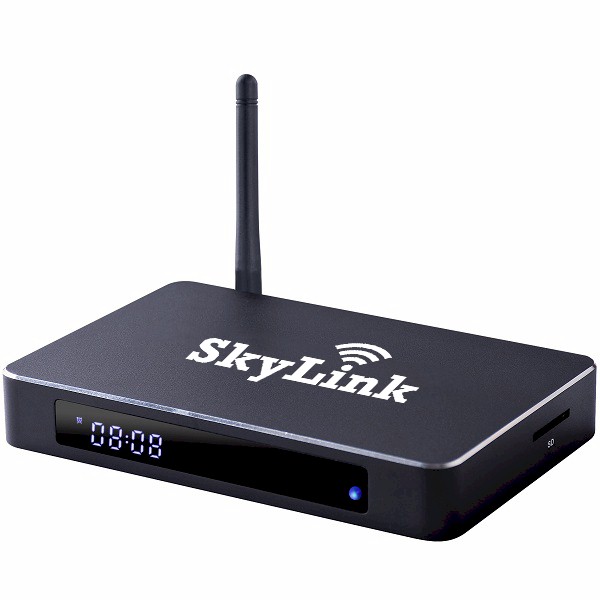

Skylink s912
Android Box
Metal TV Box Quad Core Amlogic S905 2G RAM 16G ROM
| Main
Features |
|
main chip |
Amlogic
S905 Quad-Core 64-bit
ARM Cortex-A53 CPU up to 2.0 GHz |
|
Operating system |
Android 5.1 |
|
RAM |
DDRIII 2GB |
|
EMMC flash |
16GB |
| GPU |
Mali-450
up to 750 Mhz ( DVFS) |
|
kodi |
Kodi hardware decoding |
|
Wifi |
WiFi AP6335 Support
801.11ac Gigabit lan
|
|
Streaming Protocol |
RTMP, HLS,RTSP and UDP up to 1080P |
| 4K
2K |
Support |
|
DLNA/UPNP |
Support |
| Support Video Format |
RM/RMVB, MPEG, MKV, AVI,
MP4,MOV,FLV, H.263,H.264,VC-1,DivX, Xvid,
TS,RealVideo,VP6,VP8 up to 1080P support |
| Support Audio Format |
AAC-LC/HEAAC/HE-AAC
v2,AC3,AMR-NB,DTS,MP3,OGG,RA_COOK,WMA,WMA,LPCM/PCM/ADPCM,FLA |
| Support Photo Format |
JPG/JPEG/BMP/GIF/PNG up
to 8176*8176pixels |
| File Browser |
PHOTO/MUSIC/MOVIE |
| Storage |
Support External
Storages via USB host,SD/MMC card |
| 2.4G device |
Yes |
| USB webcam |
Yes |
| |
|
|
SoftWare |
|
LibreELEC Linux |
Support |
| Youtube |
Support |
| Skype Voip |
PC camera,Voip
applications |
| Network Function |
Internet Brower,Video on
net(HTML5), YOUTOBE, YOUKU,THUNDER, facebook, Espn |
| Applications |
Yes ,can install Voip,
MSN ,Skype,QQ,3G,Yahoo,Facebook,Games and etc. |
|

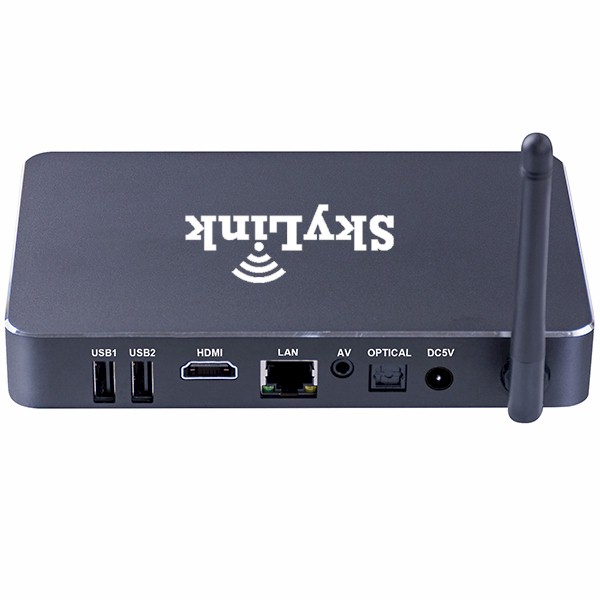

Audio & Video interface |
| CVBS output |
1 |
| SPDIF |
1 |
| HDMI interface |
HDMI 1.4 standard
interface |
|
Input interface |
| USB Host Port |
2 High speed USB 2.0,support U DISK and USB HDD |
| Power adatrper |
1 |
| Card Reader |
SD/MMC |
| Ethernet Port |
LAN 10/100 ethernet
RJ45,Wireless LAN |
|
Power Supply Specifications |
| Power Supply |
5V DC output 2A |
| Power Indicator |
Power ON Blue,Standby
Red |
|
Accessories |
| User Manual |
1pc |
| Remote control |
1pc |
| HDMI Cable |
1pc |
| Power adaptor |
1pc |
|
|
